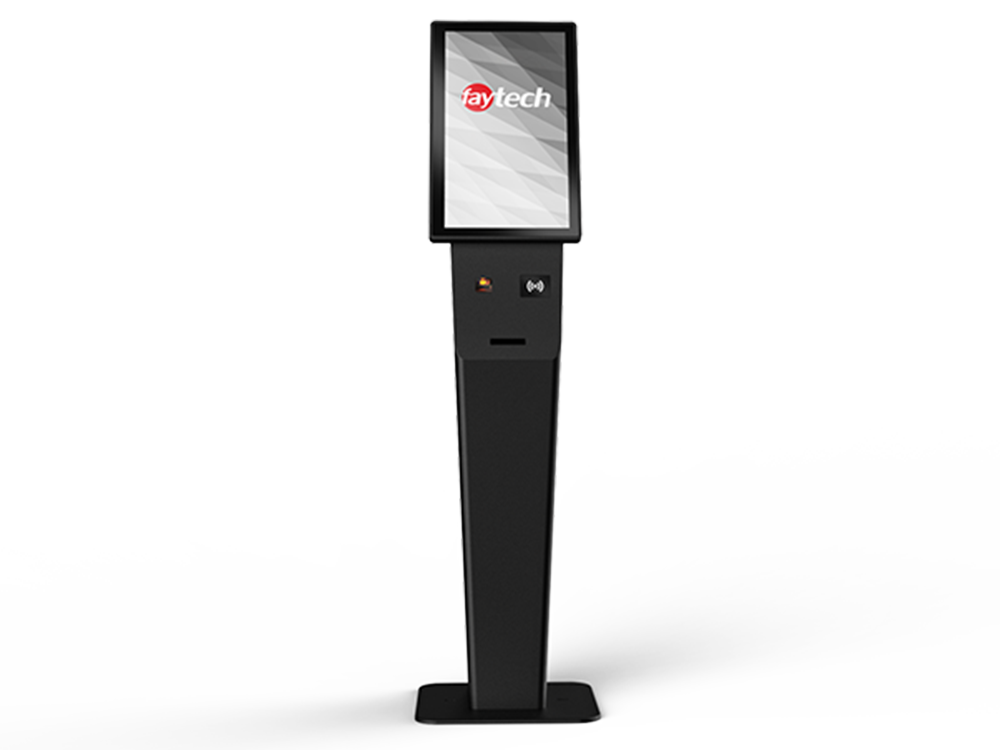

web VMS 215 Kiosk Black frontstraight Angle

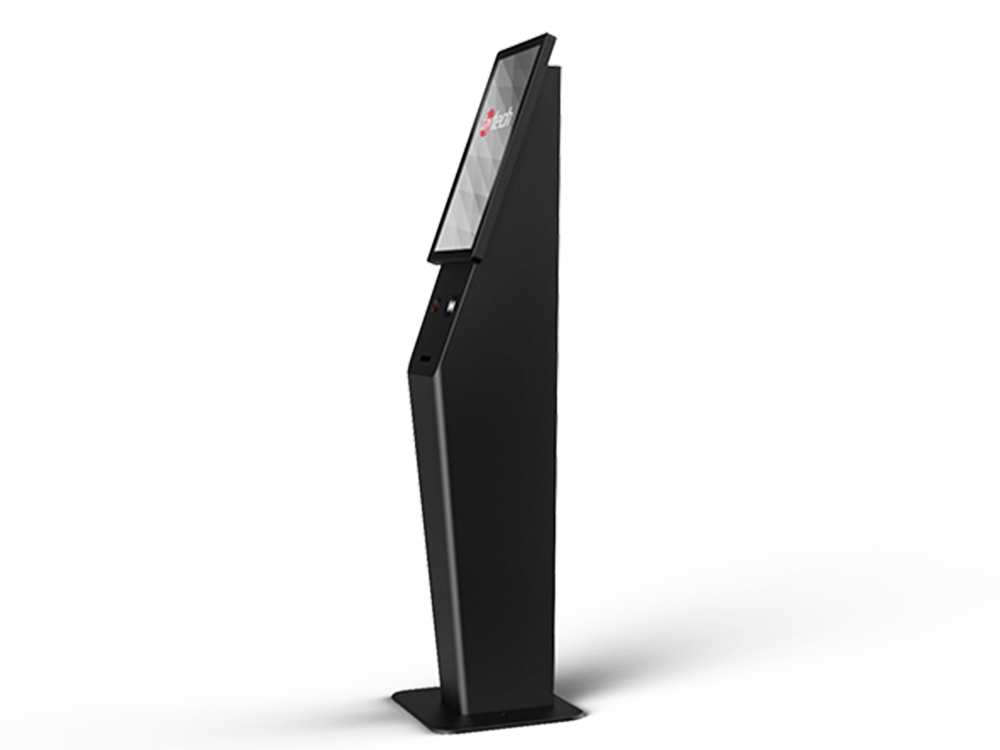

web VMS 215 Kiosk Black side Angle

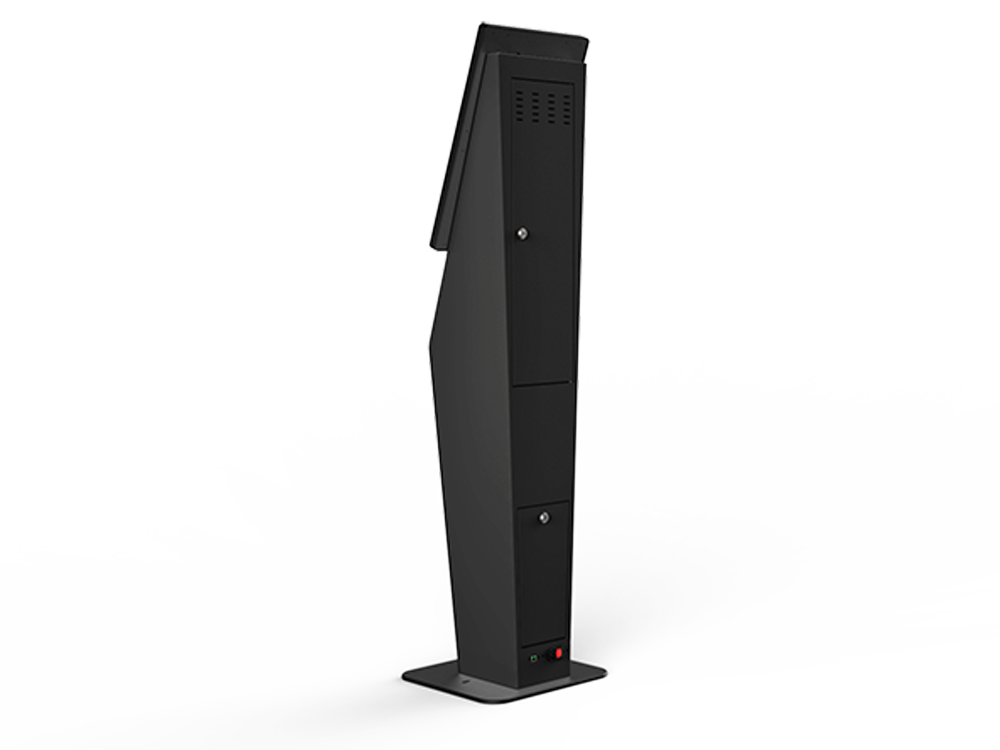

web VMS 215 Kiosk Black Back Angle

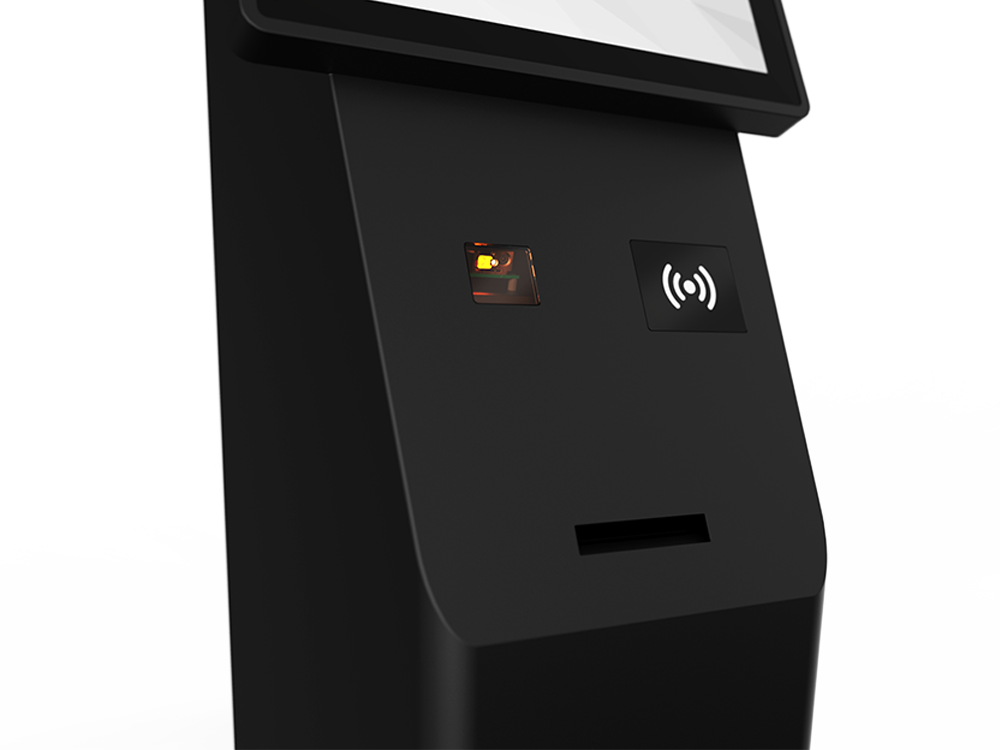

web VMS 215 Kiosk zoom

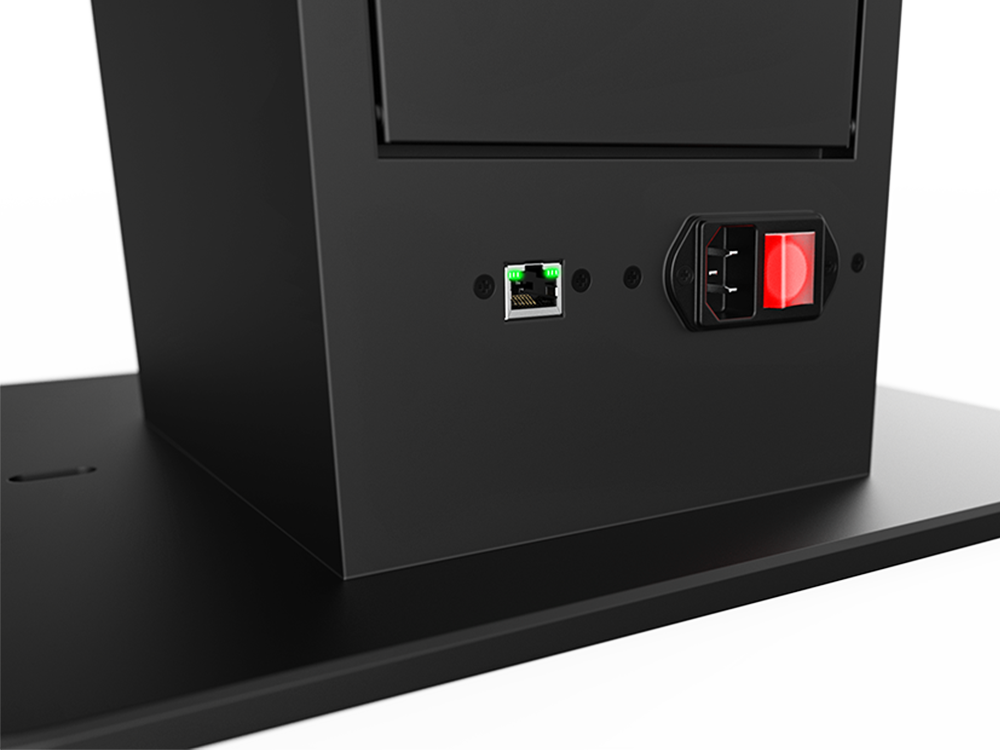

web VMS 215 Kiosk zoom back
icon IP65-IP40 icon CLEARBOND icon HDMI icon AUDIO icon USB2 icon RS-232 icon WIFI

21.5″ Modular VMS Touch Kiosk (x6413E)

Quick Links:

Buy now
SKU FT215VMSKX6413ECAPOB Category Tag

FT215VMSKX6413ECAPOB

This 21.5″ Modular VMS (Visitor Management System) Kiosk is the perfect interactive solution for any store, business or public space. With Embedded Intel-based Atom x6413E, Windows 10 IoT OS, this kiosk is plug and play ready. The kiosk is made for indoor environment and is completely customizable. It has a standard QR-code reader, sticker printer and RFID reader. the screen is exchangeable from 15.6″ to 32″, and the PC unit can be changed to any in our standard line-up!

Available in standard black and white options

    • Intel Atom® x6413E (Elkhart Lake)
    • 4GB RAM memory, 12GB SSD
    • Pre-installed Windows 10 IoT (others available)
    • Includes QR-Code reader, RFID scanner and sticker printer
    • Optically bonded Touch Panel to LCD Panel
    • Out-of-the-box working indoor Kiosk
    • 2 years warranty

21.5″ Modular VMS Touch Kiosk (x6413E)

Additional information

Product Details

  • Model number:
  • Global article code:
  • Eurpean article code:
  • EAN number:
  • IP Rating:
  • FT215VMSKX6413ECAPOB
  • 3030517616
  • n/a
  • n/a
  • IP 65 front / IP40 back

Display

  • Screen Diagonal:
  • Aspect ratio:
  • Resolution:
  • Active Area:
  • Brightness:
  • Contrast Ratio:
  • LED life time:
  • Visual angle:
  • Display Interface:
  • 21.5"
  • 16:9
  • 1920 × 1080px
  • 476.06 × 267.79 mm
  • 250 (cd/m²)
  • 1000:1
  • 30,000 h
  • 178 / 178(°)
  • LVDS

PC System

  • Processor:
  • Intel Atom® x6413E (Elkhart Lake)
  • Standard Operating System:
  • n/a
  • RAM Size:
  • 2GB DDR3
  • SSD Size:
  • GPU:
  • NPU:
  • Loudspeaker:
  • Wifi:
  • n/a
  • n/a
  • n/a
  • 2× 2W
  • Intel® AX 210
  • Ambient Light Sensor:
  • HDMI:
  • DP:
  • Audio In/Out:
  • n/a
  • 0x
  • 0x
  • Realtek ALC3236 Audio CODEC
  • USB2.0:
  • USB3.0:
  • USB OTG:
  • Ethernet Network: (10/100/1000 Mbit/s)
  • 0x
  • 0x
  • 0x
  • 10M/100M/1000M Network; W-LAN
  • Serial Port RS232: (RX / TX only)
  • Serial Port RS485: (pinA+/pinB-)
  • SD Card Slot:
  • SIM Card Slot:
  • 0x
  • 0x
  • 0x
  • 0x

Touch Panel

  • Touch Type:
  • Projected Capacitive 10-point Multi-touch
  • Printing Type:
  • Glass Thickness:
  • Cover Glass Surface Treatement:
  • Organic
  • 1.1
  • Anti-glare (chemical etching)
  • IK Protection:
  • Printing Color:
  • Strengthening:
  • Touch Controller:
  • Touch Interface:
  • Touch Resolution RX:
  • Touch Resolution TX:
  • Optical Bonding:
  • IK07
  • RAL9004 (Black)
  • Thermally Strengtened
  • EXC81W84
  • USB
  • 68
  • 38
  • Clear Bond®

Enviromental Conditions

  • Operating temperature:
  • Storage temperature:
  • Humidity range:
  • -10 ~ +60 °C
  • -20 ~ +60 °C
  • 10% - 90% RH

Certification

  • CE, FCC

Included in the Delivery

  • 100-240V ACDC active switching; 24V DC-Out, Short Installation Manual, Stable Base

Power

  • Power Indicator:
  • Working Power:
  • Power Consumption:
  • Stand-By Consumption:
  • Green LED
  • 9-36V V
  • 27.5 W
  • 1 W

Weigt & Packaging

  • Net Weight:
  • Gross Weight:
  • Packaging Material:
  • 40.00 kg est.
  • 65.00 kg est. (incl. Cartonage)
  • 100% recyclable cardboard and polyethylene (PE)
  • Packaging Size: (L × W × H)
  • 735.0 × 425.0 × 80.0

Enviromental Conditions

  • Operating temperature:
  • Storage temperature:
  • Humidity range:
  • -10 ~ +60 °C
  • -20 ~ +60 °C
  • 10% - 90% RH

Certification

  • CE, FCC

Included in the Delivery

  • 100-240V ACDC active switching; 24V DC-Out, Short Installation Manual, Stable Base

Chassis

  • Case Design:
  • Case Size:
  • IP Protection:
  • Case Color:
  • Case Coating:
  • Case Material:
  • Case Dimensions: (LxWxH)
  • Rubber Frame Sealing
  • Small
  • IP 65 front / IP40 back
  • RAL9004 (Black)
  • Powder Coating
  • Aluminium
  • 579.4 × 347.0 × 51.5
  • Clamp Support
  • cut-out clamp supports: (LxH)
  • Max. wall thickness:
  • Amount of clamps required:
  • Mounting:
  • 555.4 × 323.0 mm
  • 5.0 mm
  • 6
  • -

Power

  • Power Indicator:
  • Working Power:
  • Power Consumption:
  • Stand-By Consumption:
  • Green LED
  • 9-36V V
  • 27.5 W
  • 1 W

Weigt & Packaging

  • Net Weight:
  • Gross Weight:
  • Packaging Material:
  • 40.00 kg est.
  • 65.00 kg est. (incl. Cartonage)
  • 100% recyclable cardboard and polyethylene (PE)
  • Packaging Size: (L × W × H)
  • 735.0 × 425.0 × 80.0

Downloads

Icon

3D Model | 21.5″ Modular VMS Kiosk (x6413E)

1 file(s) 11.5 MB
Download
Icon

Datasheet | 21.5″ Modular VMS Kiosk (x6413E)

1 file(s) 0.4 MB
Download
