Front & Back Kits

The modular parts behind every faytech touch device.

Combine an optically bonded front kit with the back kit you need, joined with four screws. Or take a Pure Front Kit and build the display straight into your own machine.

A 15.6 inch aluminum-frame front kit with an Amlogic back kit, shown apart with arrows to the four screw points

Front kit (left) and back kit (right), joined with four screws

7″ to 32″front kits in three frame styles
39Pure Front Kits for integration
10back kit platforms, Intel®, ARM and monitor
CLEAR-BOND®optical bonding on every kit

Choose your front kit

Every front kit has a cover glass, a projected capacitive 10-point touch sensor and an LCD with LED backlight, optically bonded in our own plant.

Back of a 15.6 inch Pure Front Kit with the bare LCD and touch controller board

Pure Front Kit New

The bare bonded display with cables, for your own machine.

7″ to 27″ · 39 versions

  • LVDS or eDP cable, USB touch
  • Aluminum, rubber or open style
  • No back kit needed
15.6 inch aluminum-frame front kit

Aluminum frame

2.0 mm glossy cover glass in an aluminum frame.

7″ to 32″ · 13 sizes

  • Glossy glass for crisp contrast
  • IP65 front
  • Fits every back kit
15.6 inch rubber-frame front kit

Rubber frame

1.1 mm anti-glare cover glass in a rubber frame.

7″ to 27″ · 13 sizes

  • Etched glass against reflections
  • IP65 front
  • Fits every back kit
15.6 inch open frame front kit

Open frame

3.0 mm anti-glare cover glass and high brightness.

7″ to 32″ · 10 sizes

  • 500 or 1000 cd/m²
  • Outdoor version, 10.1″ to 21.5″
  • Fits every back kit
How they differ
Aluminum frameRubber frameOpen frame
Cover glass2.0 mm, glossy1.1 mm, anti-glare (etched)3.0 mm, anti-glare (etched)
Outdoor glassNoneNoneExtra 3.2 mm protective glass, ceramic print
Frame (standard front kit)AluminumRubberOpen frame
BrightnessStandard LCDStandard LCD500 or 1000 cd/m²
Front kit sizes7″ to 32″7″ to 27″7″ to 32″
Pure Front Kit9 sizes, 7″ to 27″13 sizes, 7″ to 27″17 versions, 7″ to 21.5″

Glass values from the Pure Front Kit datasheets. The 7″ rubber and 7″ open frame kits have glossy glass with an anti-fingerprint coating. Pure Front Kits have no frame in any style.

Need a fully sealed device? Our stainless steel IP65 and IP69K kits are on the outdoor and IP69K page.

NewPure Front Kits

The bare touch display, ready to build in

Cover glass, touch sensor and LCD with LED backlight, optically bonded into one part and shipped with its cables. There is no housing and no back kit, so it fits your cut-out, your enclosure and your electronics. It also works with every faytech back kit.

Connects to your boardLVDS or eDP display cable and a USB touch controller in the box.
Bonded in our own plantCLEAR-BOND® optical bonding for better contrast and a tougher front.
Outdoor versions10.1″, 15″ and 21.5″ with 1000 cd/m², ceramic print and protective glass.
A drawing for every kitEach datasheet has the dimension drawing for your cut-out.
Exploded view of a Pure Front Kit: cover glass, touch sensor, LCD module and LED backlight
Cover glass, touch sensor, LCD and LED backlight in one kit
Touch HMIs on production machines in a cleanroomMade for machine HMIs and control panels
7″ to 27″14 sizes
1000 cd/m²high-brightness option
LVDS · eDPplus USB touch
IP65front, when built in

Three styles, 39 versions. Aluminum, rubber or open frame, for machine HMIs, control panels, kiosks and custom enclosures.

All 39 Pure Front Kits at a glance
Values from the 2026 datasheets. Brightness of bonded aluminum kits 15.6″ and up is measured after bonding.
ModelSizeStyleResolutionBrightnessInterfaceOutline L × W × HOperating temp.
FT07APFKITCAPOB7″Aluminum1024×600600 cd/m²LVDS + USB195.0 × 129.5 × 8.50 mm-20°C to 70°C
FT08APFKITCAPOB8″Aluminum1024×768330 cd/m²LVDS + USB200.0 × 155.0 × 6.15 mm-10°C to 60°C
FT101APFKITCAPOB10.1″Aluminum1280×800350 cd/m²LVDS + USB257.8 × 183.4 × 7.79 mm-20°C to 70°C
FT133APFKITCAPOB13.3″Aluminum1920×1080260 cd/m²eDP + USB326.0 × 208.5 × 6.15 mm0°C to 50°C
FT15APFKITCAPOB15″Aluminum1024×768350 cd/m²LVDS + USB345.0 × 268.6 × 13.5 mm-20°C to 70°C
FT156APFKITCAPOB15.6″Aluminum1920×1080200 cd/m²eDP + USB381.3 × 238.8 × 6.70 mm0°C to 50°C
FT215APFKITCAPOB21.5″Aluminum1920×1080220 cd/m²LVDS (dual) + USB518.0 × 317.0 × 14.2 mm0°C to 50°C
FT24APFKITCAPOB23.8″Aluminum1920×1080220 cd/m²LVDS (dual) + USB571.5 × 348.0 × 15.15 mm0°C to 50°C
FT27APFKITCAPOB27″Aluminum1920×1080270 cd/m²LVDS + USB644.3 × 382.7 × 11.18 mm0°C to 50°C
FT07RPFKITCAPOB7″Rubber1024×600600 cd/m²LVDS + USB178.0 × 121.0 × 7.60 mm-20°C to 70°C
FT08RPFKITCAPOB8″Rubber1024×768330 cd/m²LVDS + USB186.75 × 146.24 × 5.40 mm-10°C to 60°C
FT10RPFKITCAPOB10″Rubber1024×768300 cd/m²LVDS + USB236.7 × 187.6 × 5.50 mm-10°C to 50°C
FT101RPFKITCAPOB10.1″Rubber1280×800350 cd/m²LVDS + USB257.8 × 183.4 × 4.95 mm-20°C to 70°C
FT121RPFKITCAPOB12.1″Rubber1024×768400 cd/m²LVDS + USB287.0 × 232.0 × 11.6 mm-30°C to 80°C
FT133RPFKITCAPOB13.3″Rubber1920×1080300 cd/m²eDP + USB326.0 × 208.5 × 4.95 mm0°C to 50°C
FT15RPFKITCAPOB15″Rubber1024×768350 cd/m²LVDS + USB345.0 × 277.0 × 12.6 mm-20°C to 70°C
FT156RPFKITCAPOB15.6″Rubber1920×1080220 cd/m²eDP + USB375.3 × 232.8 × 6.20 mm0°C to 50°C
FT17RPFKITCAPOB17″Rubber1280×1024250 cd/m²LVDS (dual) + USB379.0 × 319.0 × 12.9 mm0°C to 50°C
FT19RPFKITCAPOB19″Rubber1280×1024250 cd/m²LVDS + USB417.5 × 350.5 × 13.50 mm0°C to 50°C
FT215RPFKITCAPOB21.5″Rubber1920×1080250 cd/m²LVDS (dual) + USB518.0 × 317.0 × 14.1 mm0°C to 50°C
FT24RPFKITCAPOB23.8″Rubber1920×1080500 cd/m²LVDS + USB569.4 × 337.0 × 12.0 mmon request
FT27RPFKITCAPOB27″Rubber1920×1080300 cd/m²LVDS + USBon request0°C to 50°C
FT07OPFKITCAPOB7″Open frame indoor1024×600600 cd/m²LVDS + USB216.1 × 149.9 × 9.50 mm-20°C to 70°C
FT101OPFKITCAPOB10.1″Open frame indoor1280×800500 cd/m²LVDS + USB279.0 × 209.8 × 13.6 mm-20°C to 70°C
FT116OPFKITCAPOB11.6″Open frame indoor1920×1080500 cd/m²eDP + USB315.4 × 211.6 × 14.2 mm-20°C to 70°C
FT133OPFKITCAPOB13.3″Open frame indoor1920×1080500 cd/m²eDP + USB353.4 × 233.5 × 13.4 mm0°C to 50°C
FT15OPFKITCAPOB15″Open frame indoor1024×768500 cd/m²LVDS + USB368.0 × 296.8 × 13.8 mm-30°C to 80°C
FT156OPFKITCAPOB15.6″Open frame indoor1920×1080500 cd/m²eDP + USB396.0 × 265.0 × 14.8 mm0°C to 50°C
FT215OPFKITCAPOB21.5″Open frame indoor1920×1080500 cd/m²LVDS (dual) + USB535.1 × 343.1 × 14.9 mm0°C to 50°C
FT07OPFKITCAPHBOB7″Open frame indoor HB1024×6001000 cd/m²LVDS + USB216.1 × 149.9 × 11.6 mm-20°C to 70°C
FT101OPFKITCAPHBOB10.1″Open frame indoor HB1280×8001000 cd/m²LVDS + USB279.0 × 209.8 × 13.6 mm-20°C to 70°C
FT116OPFKITCAPHBOB11.6″Open frame indoor HB1920×10801000 cd/m²eDP + USB315.4 × 211.6 × 14.2 mm-20°C to 70°C
FT133OPFKITCAPHBOB13.3″Open frame indoor HB1920×10801000 cd/m²eDP + USB353.4 × 233.5 × 13.4 mm0°C to 50°C
FT15OPFKITCAPHBOB15″Open frame indoor HB1024×7681000 cd/m²LVDS + USB368.0 × 296.8 × 13.8 mm-30°C to 80°C
FT156OPFKITCAPHBOB15.6″Open frame indoor HB1920×10801000 cd/m²eDP + USB396.0 × 265.0 × 14.8 mm0°C to 50°C
FT215OPFKITCAPHBOB21.5″Open frame indoor HB1920×10801000 cd/m²LVDS (dual) + USB535.1 × 343.1 × 14.9 mm0°C to 50°C
FT101OPFKITCAPHBOBOD10.1″Open frame outdoor1280×8001000 cd/m²LVDS + USB279.0 × 209.8 × 17.4 mm-10°C to 60°C
FT15OPFKITCAPHBOBOD15″Open frame outdoor1024×7681000 cd/m²LVDS + USB368.0 × 296.8 × 17.2 mm-10°C to 60°C
FT215OPFKITCAPHBOBOD21.5″Open frame outdoor1920×10801000 cd/m²LVDS (dual) + USB535.1 × 343.1 × 18.7 mm-10°C to 60°C

Configure your kit

Pick a Pure Front Kit for your machine, or combine a front kit and a back kit into a touch monitor or touch PC. Send the result to us for a quote.

Pure Front Kit, 15.6″ aluminum style

Frame style

Size

Electronics

Choose the back kit

Back kits hold the computer or monitor board in an aluminum housing and mount on any front kit with four screws. Small housings fit 7″ and 8″ kits, large housings 10″ and up.

Front of an Elkhart Lake back kit with COM, USB, HDMI, DisplayPort and two LAN ports

Elkhart Lake

Celeron® J6412, Atom® x6211E or x6413E

  • 8 GB RAM, 128 GB SSD
  • Windows® or Linux
  • Small or large housing, large with 9 to 36 V DC
Front of an Intel back kit housing

Twin Lake · Alder Lake-N

Intel® Processor N150 or N97

  • Small housing for 7″ and 8″
  • Large housing with 9 to 36 V DC
  • N97 code on request

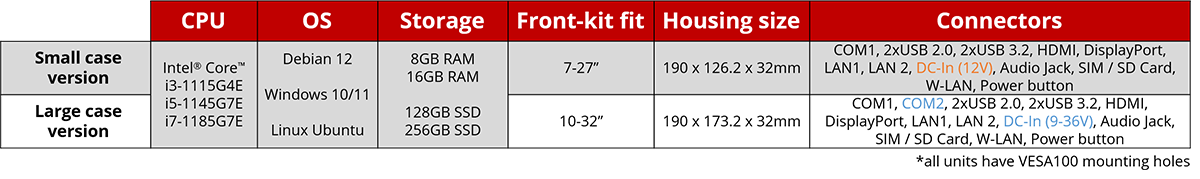

Front of a Tiger Lake back kit

Tiger Lake U

Core™ i3, i5 or i7

  • i3-1115G4E, i5-1145G7E or i7-1185G7E
  • i5 with 8 GB RAM, 256 GB SSD; i3 and i7 for project orders
  • Windows® or Linux, large housing, 9 to 36 V DC

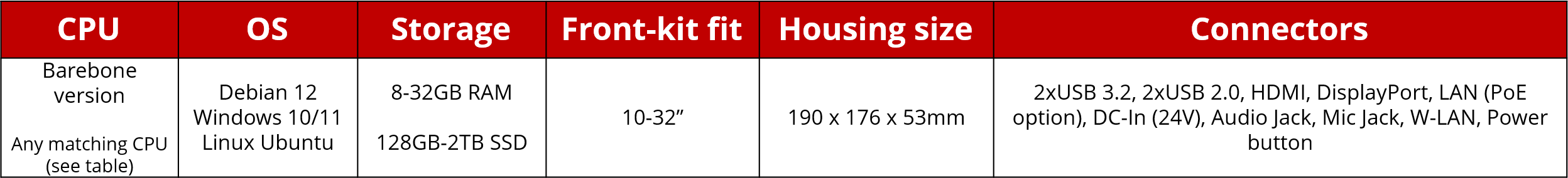

Mini-ITX H610 back kit housing with ports and Wi-Fi antenna

Mini-ITX H610

12th to 14th gen Intel® Core™

  • LGA1700, CPUs up to 65 W
  • Up to 32 GB RAM, extra SSD up to 2 TB
  • For 10″ and larger, 24 V DC
Datasheet (PDF)

Questions about kits

What is the difference between a front kit and a Pure Front Kit?

A front kit is the front half of a faytech touch device: frame, cover glass, touch sensor and LCD, with the mounting points for a back kit. Add a back kit and you have a touch monitor or touch PC. A Pure Front Kit is the bare bonded display with its cables and touch controller. You build it into your own machine or housing and drive it with your own electronics, or with one of our back kits.

How do front kits and back kits connect?

The back kit mounts on the back of the front kit with four screws, and the display and touch cables plug in inside. All back kits use the same mounting, so you can choose the computer independently of the front kit.

Which signals does a Pure Front Kit need?

LVDS or eDP for the display, depending on the size, and USB for touch. Every kit ships with the display cable and a USB touch controller board. Larger and high-brightness kits also include an LED backlight driver board. The datasheet lists the voltages and the pin assignment.

Can I use the kits outdoors?

Our outdoor open frame kits have 1000 cd/m², a ceramic print, a wide-temperature panel and an extra protective glass. All other kits are made for indoor use. Protect every kit from direct sunlight, because it can heat the display beyond its operating range.

Why are all kits optically bonded?

With our CLEAR-BOND® process, the gap between cover glass, touch sensor and LCD is filled with clear resin. This gives better contrast and colors, a sturdier front, splinter protection and better heat dissipation. More about optical bonding.

Can you adapt a kit for my project?

Yes. We make the cover glass, the bonding and the frames ourselves, so we can change the glass, print color, brightness or frame for your project. Send us your drawing or cut-out size and we will suggest the right kit.

Have a drawing or a cut-out size?

Send it to us. We will suggest the kit that fits, or adapt glass, print and brightness for your project.
