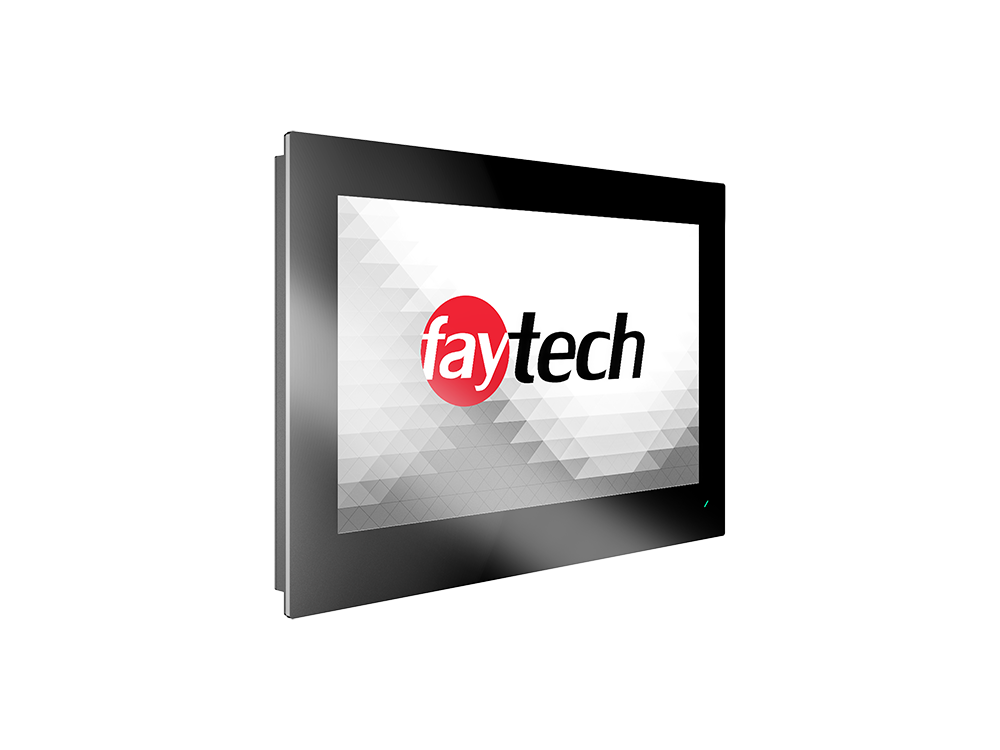

FT133TMCAPOFOB front angle 02

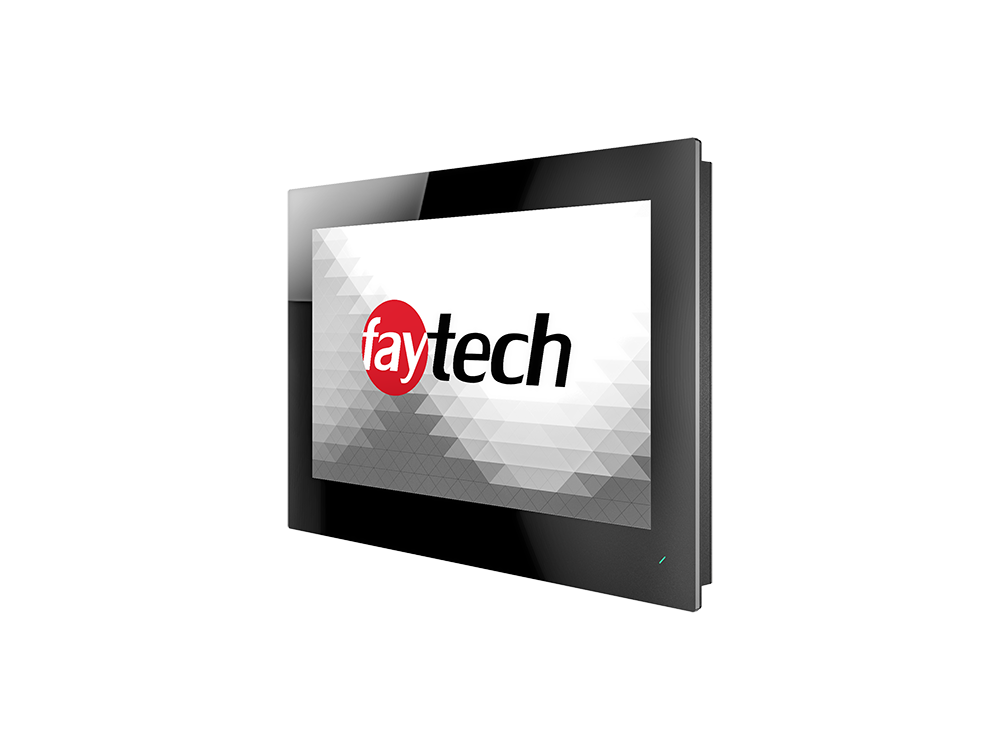

FT133TMCAPOFOB front angle 01

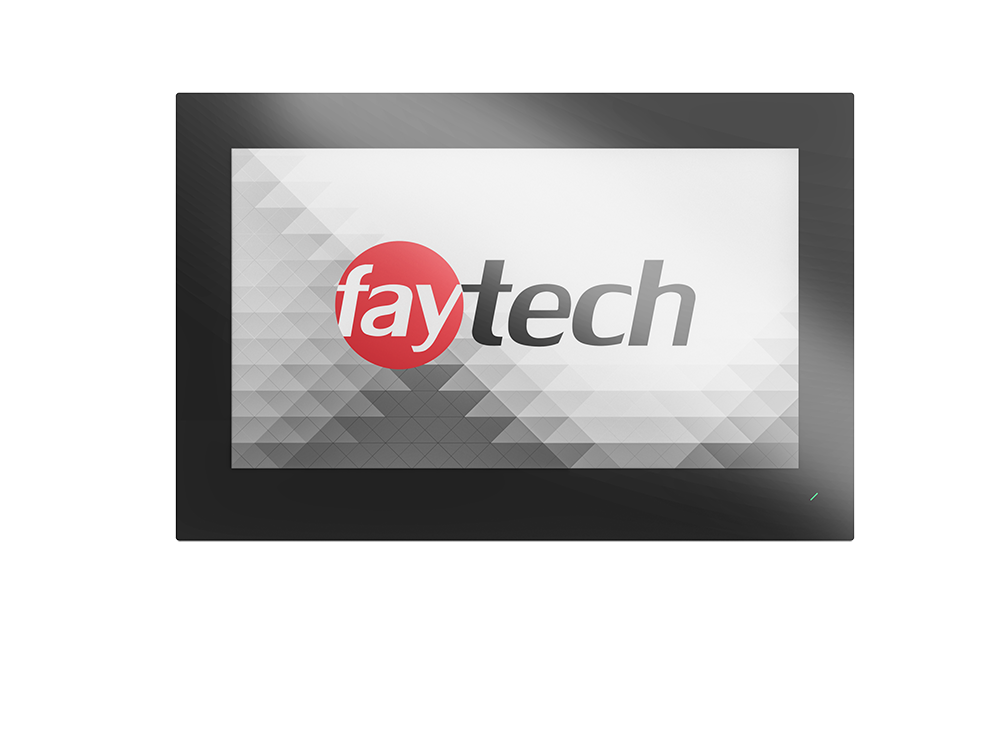

FT133TMCAPOFOB front

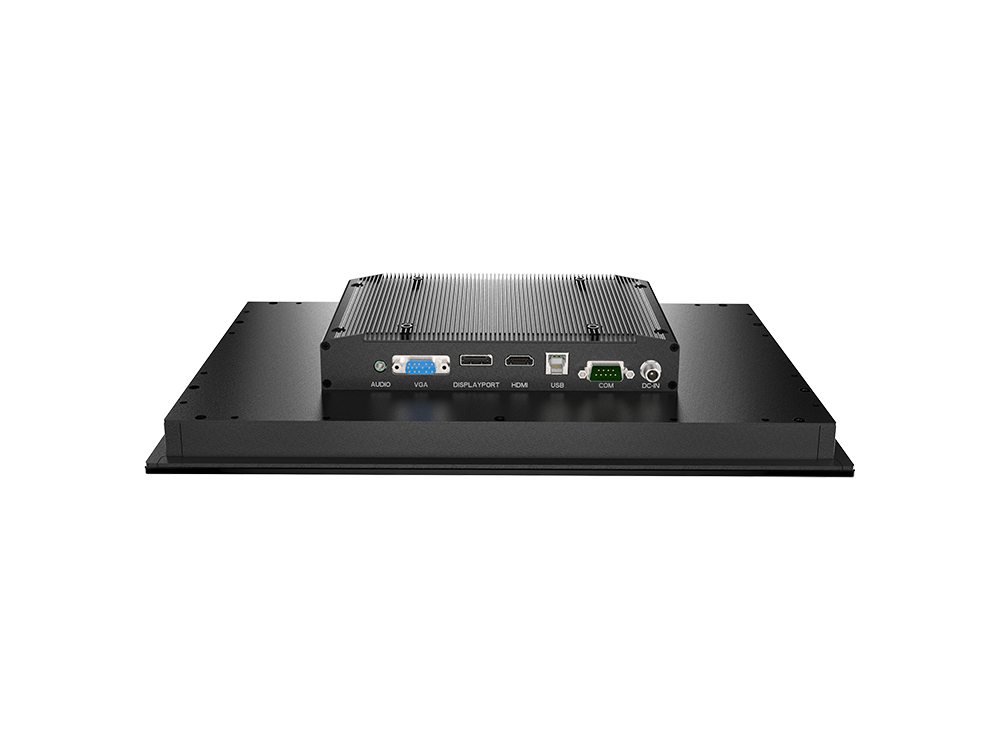

FT133TMCAPOFOB connectors

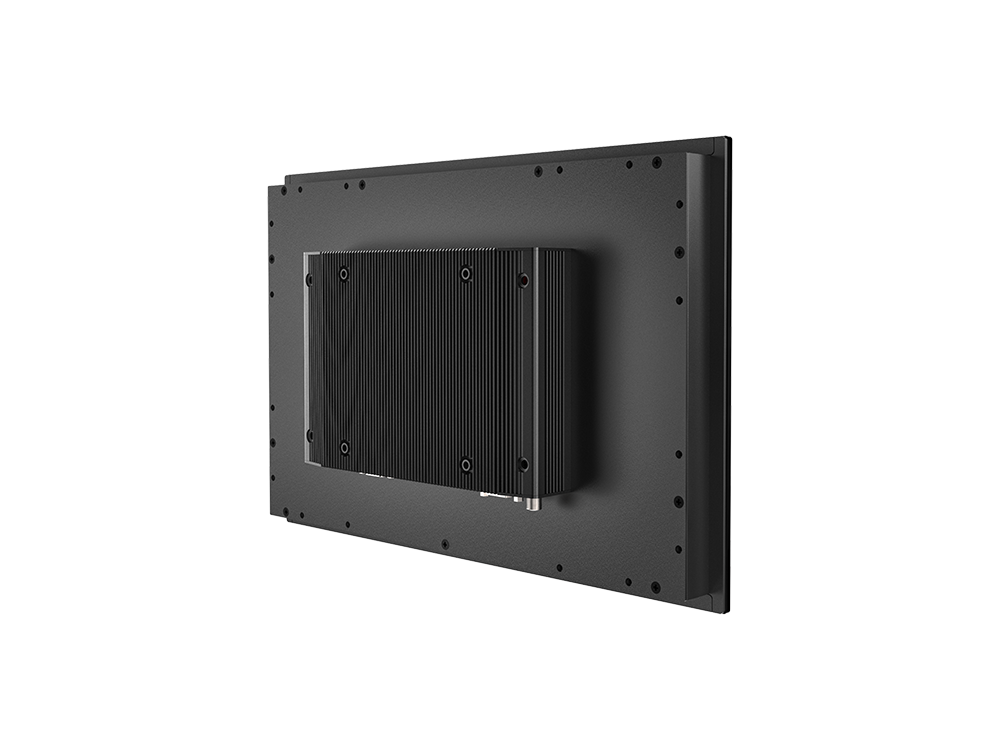

FT133TMCAPOFOB back angle

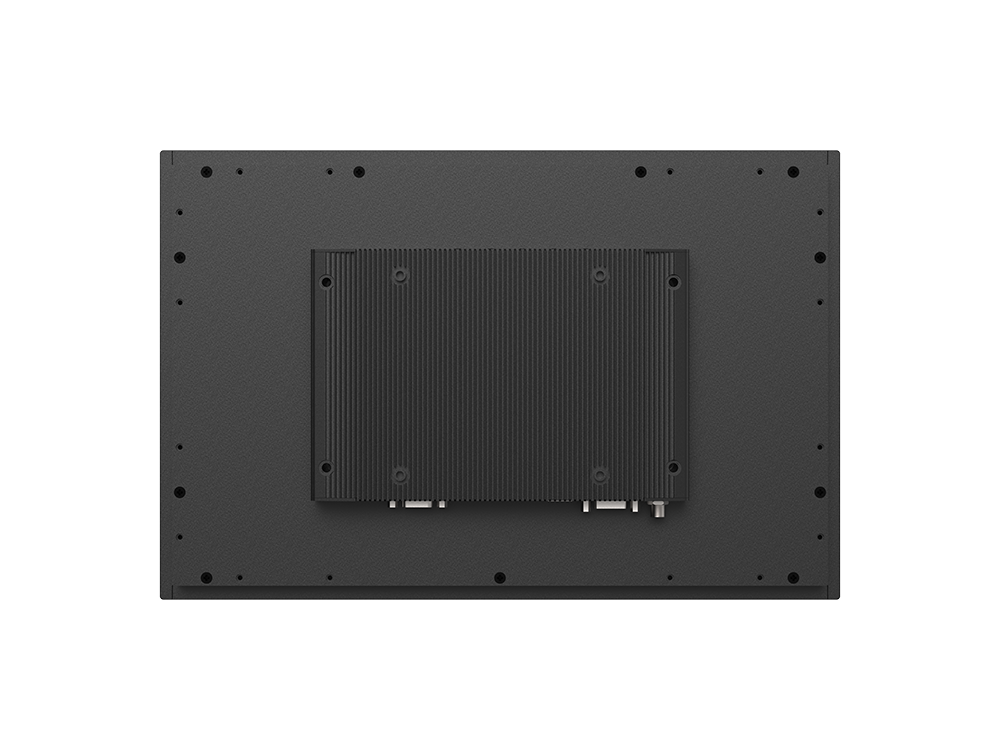

FT133TMCAPOFOB back

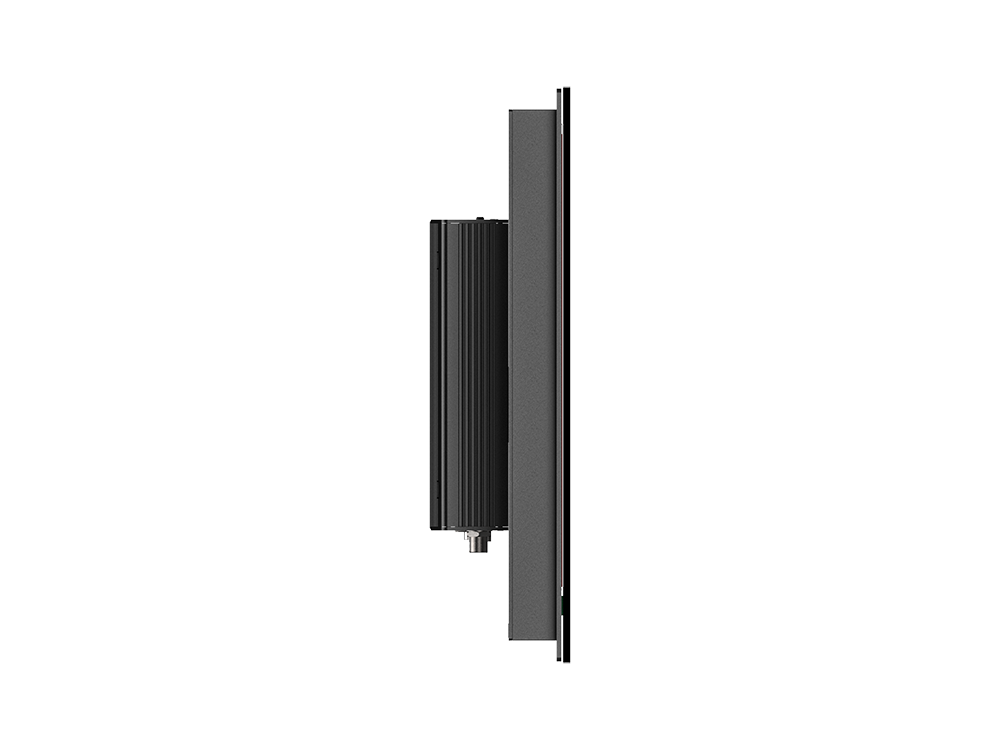

FT133TMCAPOFOB right

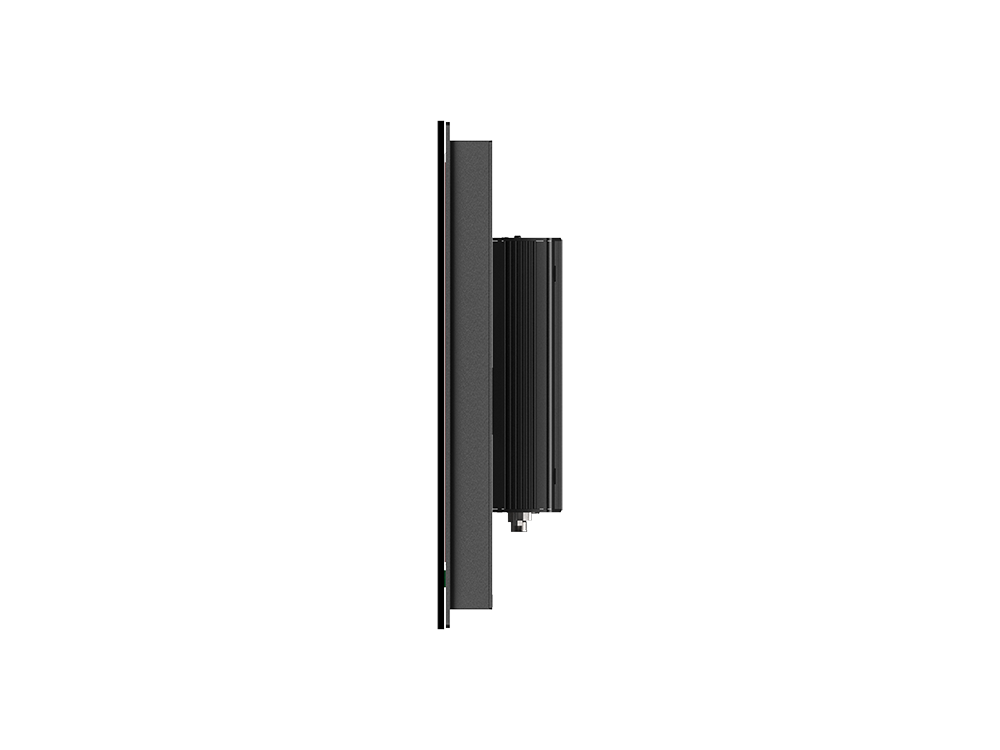

FT133TMCAPOFOB left
icon IP65-IP40 icon ANTI-MICROBAL icon CLEARBOND icon DP icon HDMI icon VGA icon AUDIO icon USB2

13.3″ Open Frame Touch Monitor (Indoor, 500 cd/m2)

Quick Links:

SKU FT133TMCAPOFOB Categories ,
Buy now

FT133TMCAPOFOB
indoor | 500 cd/m2 | 30k hours LED MTBF | organic printing

faytech’s Open Frame Capacitive Touch Monitors are the perfect choice for industrial and business applications. The capacitive 10-finger multitouch panel brings an easy using experience for a wide range of applications. It is the perfect interactive solution for digital signage, classrooms, meeting rooms, industrial automation, shopping malls, hotels and many other areas. The device is to be used as (touchscreen) display for indoor use as control panel, digital signage, wayfinding, POS and similar applications with standard brightness backlight.

  • 3.0mm cover glass with 7H surface hardness
  • Optically bonded Touch Panel to LCD Panel
  • Anti-glare surface treatment (chemical etching)
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • Integrated audio speakers (2x2w)
  • 2-year guarantee (24/7 usage)

13.3″ Open Frame Touch Monitor (Indoor, 500 cd/m2)

Additional information

Product Details

  • Model number:
  • Global article code:
  • Eurpean article code:
  • EAN number:
  • FT133TMCAPOFOB
  • 3030520605
  • 4010080555
  • 6920734003259

Display

  • Display Size [inch]:
  • Aspect ratio:
  • Resolution:
  • Brightness:
  • Contrast:
  • LED life time [h]:
  • Visual angle (h/v):
  • Display Interface:
  • 13.3"
  • 16:9
  • 1920 × 1080px
  • 500(cd/m²)
  • 800:1
  • 30000
  • 170 / 170(°)
  • eDP

Monitor System

  • Monitor Controller:
  • Monitor Firmware:
  • Loadspeaker:
  • Realtek® RTD2556T
  • Standard
  • 2x2W
  • Connections:
  • HDMI, DP, VGA, Audio In, Serial Port RS232 (RX / TX only), USB-Touch, 12V DC-In

Touch Panel

  • Touch Type:
  • Projected Capacitive 10-point Multi-touch
  • Printing Type:
  • Glass Thickness:
  • Organic
  • 3.0 mm
  • Cover Glass Surface:
  • Anti-glare (chemical etching)
  • IK Protection:
  • Printing Color:
  • Strengthening:
  • Touch Controller:
  • Touch Interface:
  • Touch Resolutions RX:
  • Touch Resolutions TX:
  • Optical Bonding:
  • IK08
  • RAL9004 (Black)
  • Thermally Strengthened
  • EXC81W84
  • USB
  • 53
  • 30
  • Clear Bond®

Environmental Conditions

  • Operating temperature:
  • Storage temperature:
  • Humidity range:
  • -10 ~ 60 °C
  • -20 ~ +60 °C
  • 10% - 90% RH

Certifications

  • CE, FCC

Chassis

  • Case Design:
  • Case Size:
  • IP Protection:
  • Case Color:
  • Case Coating:
  • Case Material:
  • Case size L x W x H:
  • Mounting:
  • Open Frame
  • 353.4 × 233.5 × 57.1
  • IP 65 front / IP40 back
  • RAL9004 (Black)
  • Powder Coating
  • Aluminium
  • 353.4 × 233.5 × 57.1
  • VESA 100
  • Clamp Support
  • cut-out clamp supports: (LxH)
  • Max. wall thickness:
  • Amount of clamps required:
  • 337.4 × 217.5 mm
  • 5.0 mm
  • 8

Weight & Packaging

  • Net Weight:
  • Gross Weight:
  • 1.95 kg
  • 4.00 kg (inc. Cartonage)
  • Packaging Material
  • 100% recyclable cardboard and polyethylene (PE)
  • Packaging Size L x W x H
  • 495.0 × 310.0 × 80.0 mm

Power

  • Power indicator:
  • Working Power:
  • Power Conumption:
  • Stand-By Conumption:
  • Green LED
  • 12 V
  • 10 W
  • <1 W

Included in the Delivery

  • 100-240V ACDC active switching; 12V DC-Out, Short Installation Manual, HDMI Cable, USB-Touch Cable

Downloads

Icon

3D Model | 13.3″ Open Frame Touch Monitor (indoor, 500 cd/m2)

1 file(s) 2.28 MB
Download
Icon

Datasheet | 13.3″ Open Frame Touch Monitor (indoor, 500 cd/m2)

1 file(s) 0.6 MB
Download
Icon

Manual | Modular Capacitive Touch Monitors (Rubber, Alu & Open Frame)

1 file(s) 0.00 KB
Download
Icon

Short Manual | Modular Capacitive Touch Monitors (Rubber, Alu & Open Frame)

1 file(s) 0.00 KB
Download
Icon

Driver | Capacitive Touch Drivers (w/o Linux)

1 file(s) 0.00 KB
Download
Icon

Driver | Capacitive Touch Driver (Linux)

1 file(s) 0.00 KB
Download
