Interactive Whiteboard

Q: Do you also have outdoor and high brightness options?

Yes, we produced a high brightness version with 1000 cd/m 2 brightness, which is perfect for semi-outdoor environments. Additionally, with our expertise in case manufacturing we are also able to produce a complete IP65 module able to be used in full outdoor environments.

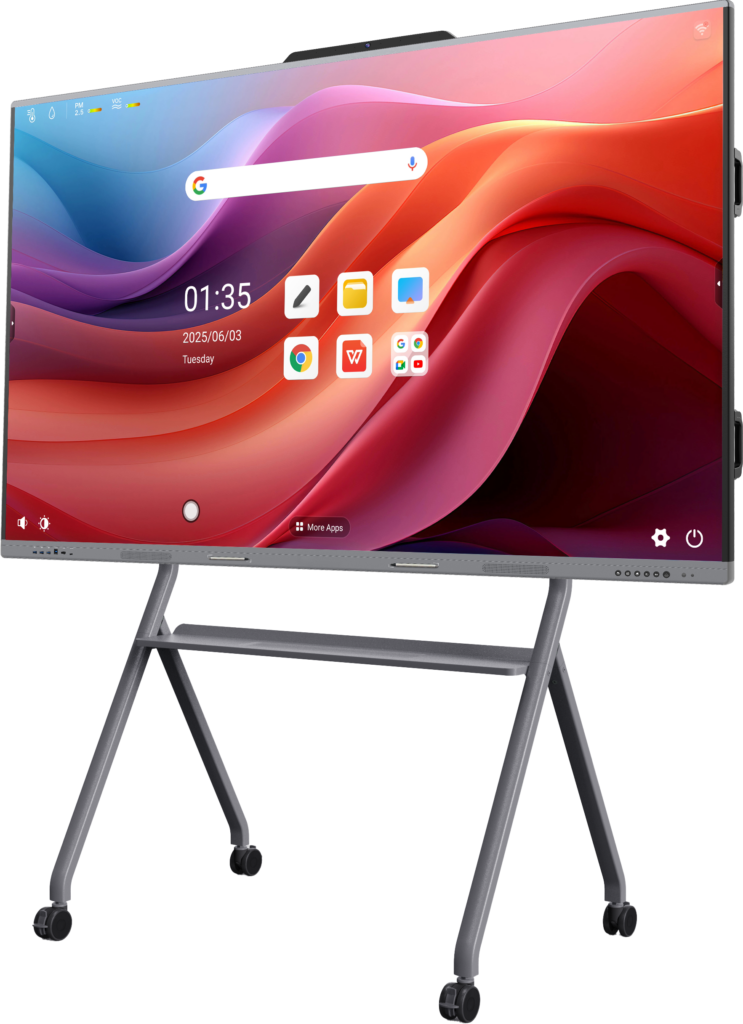

Digital Smartboard for Meetings, Seminars and Conferences

Discover Faytech’s cutting-edge whiteboard solution series
with True Optical Bonding Interactive Flat Panel Displays (IFPDs).

The 86″ is stocked and ready to order!
65″ and 75″ available for project requests

Key features

4K Resolution (3840×2160) & 1.07B colors displayed
Android 13 OS with Windows 10/11 OPS possibility horizontal use
40-point multi-touch infrared touch & pen support (included)
True Optical Bonding (not Zero Bonding) for most vivid display image
Microphone & Camera allows for easy screen share and meetings
Tempered shatterproof cover glass
VESA mounting for easy installation or mounting on stand
Long lifetime built for extensive use within offices and classrooms

Faytech’s interactive whiteboard allows you to explore the world of interactive teamwork in an even more cost-effective way. These amazing screens transform the way you communicate, collaborate, and interact with your audience or team. Thanks to their easy-to-use touch interface, vivid visuals, and seamless connection to digital content, these displays give you the power to create impressive presentations, make learning more engaging, and make teamwork smoother, especially in business settings. You can write, draw, and share ideas in a whole new way, making your work and learning experiences more interactive and exciting.

Available Screen Sizes

Use Cases for Interactive Whiteboard

Benefits of True Optical Bonding

True Optical Bonding

Reflections: 8 - 10%
Brightness: ~8%
Glass Transparency: 90 - 90%
Hardness: 7H
Impact Energy without Damage: IK08-10
Shatterproof: Yes
Dust or Humidity: No
Viewing Angle: Larger
Contrast and Color Value: High

Fast touch response & high accuracy.

Screen The surface is leveled evenly and without visual impairment.

Zero Bonding

Reflections: 12 - 15%
Brightness: ~15%
Glass Transparency: 85 - 88%
Hardness: 7H
Impact Energy without Damage: IK07-08
Shatterproof: No
Dust or Humidity: Yes
Viewing Angle: Middle
Contrast and Color Value: Normal

Potential slight delay in touch response & relatively lower accuracy

Screen leveling may fluctuate to some degree with potential irregularities

Air Gap (no bonding)

Reflections: 15 - 18%
Brightness: ~18%
Glass Transparency: 82 - 85%
Hardness: 7H
Impact Energy without Damage: IK07-08
Shatterproof: No
Dust or Humidity: Yes
Viewing Angle: Smaller
Contrast and Color Value: Low

Likely delay in touch response and higher chance of misdirected accuracy

Average screen leveling with a border that may affects the visual quality

Included 48MP Webcam

Perfect for video conferences, these displays come equipped with built-in microphones and cameras, making communication a cinch. Their tough design, featuring tempered glass and shatter-proof cover glass, ensures durability, and their slim, lightweight frame makes them easy to mount anywhere. Built for long-term use in offices and classrooms, these whiteboards are fully customizable to suit your specific needs. Plus, with true optical bonding technology, they provide the sharpest and most vivid display in the industry, enhancing the user experience.

48MP Resolution
110° Field of View

Face Tracking
Sound Source Localization

Large microphone array
for rooms up to 25sqm

Echo Elimination Environmental
Noise Suppression

More Features for our Interactive Whiteboard

SPCC Steel Mobile Stand

Optional

Android OS with 20+ Apps

Included

Whiteboard Styluses

Included

OPS Specifications (on project request)

Open Pluggable Specification: Windows 10 & 11, Linux

3 x USB3.0
2 x USB2.0
1 x Type-C (Only USB)
1 x RJ45 10/100/1000M
1 x HDMI 1.4 out, Max.4K/30Hz
1 x DP out, Max4K@60Hz
1 x 3.5mm Line out
1 x 3.5mm Mic in
2 x WIFI/BT ANT
1 x Power LED

FAQ

What are the main applications of these stretched displays?

In many locations there is limited space for advertising or information displays. Think about supermarket shelves, convenience stores, transportation hubs such as metros and train stations, as well as airports. Additionally, these displays are quite the eye-catcher and ensures that the uniquely created content is being watched by shoppers and passers-by.

What custom sizes and ratios are available for the strip-type display?

Besides the 48.5” with 16:3 ratio, we also offer other custom sizes, such as 28” with 16:3 ratio, 36.6” with 20:3 ratio and 58.4” with 32:9 ratio. Additionally, there are many other sizes and ratios that faytech offers upon request as well. So, let us know what sizes you would be interested in for your project, and we will get back to you!

Do you also have outdoor and high brightness options?

Yes, we produced a high brightness version with 1000 cd/m² brightness, which is perfect for semi-outdoor environments. Additionally, with our expertise in case manufacturing we are also able to produce a complete IP65 module able to be used in full outdoor environments.

What is unique about the custom-cut strip-type displays of faytech?

Stretched displays, or strip-type displays are in many cases produced using a standard format open cell (e.g. 16:9, 16:10, 5:4 or 4:3) and ‘cutting’ it into stretched displays. However, doing so will allow for unclean sealing, which allows for bleeding, temperature and general quality issues in the long run, due to it not being sealed properly.

faytech’s strip-type displays however are custom produced open cell modules, specifically made for these sizes. This will allow the quality to be just as good as any other standard display.

Downloads & Video

Datasheet | 86" Interactive Whiteboard

1 file(s) 3.46 MB
